Din Flanged Y Type Strainer Cast Steel Industrial Y Pattern Filter Pn16 - Pn40
Features
1. Generally
Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fibre, pharmaceutical and food industry etc.
2. Y Strainer Features
A compact type strainer with low fluid resistance and requiring less installation space.
The Y type strainer can be widely used for removing dirt and dust from pipelines.
Lightweight, compact, and designed for easy piping, the Y type strainer comes in a wide variety of structures, shapes, and mesh types.
Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.
B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.
C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.
D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.
Strainer Main Technical Paremeters
A) Operating Temperature(oC):CS:-30~380oC, SS: -80~450oC;
B) Operating Pressure(Mpa): 0.6 ~ 4.0 Mpa
C) Body Material: GS-C25, WCB, 1.4308, 1.4408, SS304, SS304L, SS316, SS316L etc.
D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.
E) Strainer Element Material: Stainless steel, Duplex Stainless Steel
F) Screen mesh from 10 mesh to 400 mesh,also we can produce according to customer's repuinement.
G) Shell inspection And Test: ISO5208 / Din
Descriptions:
1. Din Y Type Strainer Standards
| Design & Manufacture | DIN EN 12516-1, |
| BS EN 12516.1, |
| EN12516 |
| Face to Face Dimension | DIN EN558.1, |
| BS EN 558-1 |
| EN12982 |
| Flange Ends Dimension | BS EN 1092-1, |
| DIN EN1092.1 |
| BW End Dimension | EN12627 |
| Test & Inspection | BS EN 12266, |
| DIN N12266.1 |

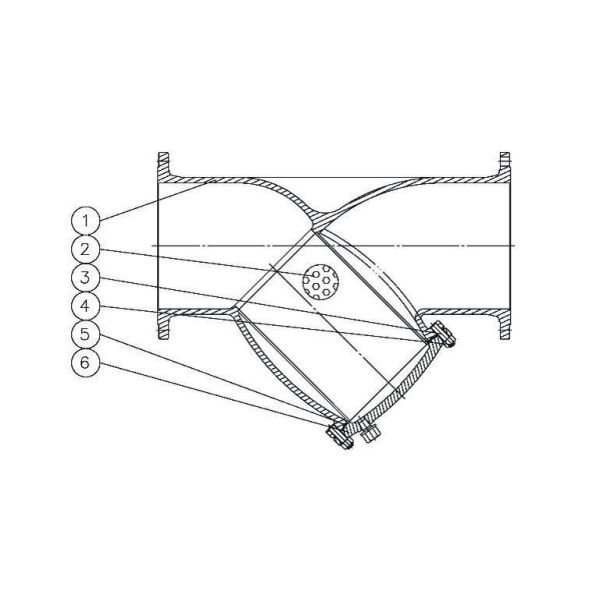

2. Main Parts and Material List For Din Y Type Strainer
| No. | Parts Name | Material |
| 1 | Body | Din GS-C25 / WCB | Din 1.4308 / CF8 | Din 1.4408 / CF8M |
| 2 | Screen | SS304 / SS316 |
| 3 | Cover Bolt | A193 B7 | A193 B8 | A193 B8M |
| 4 | Cover Nut | A194 2H | A194 8 | A194 8M |
| 5 | Gasket | Graphite+Stainless Steel(304, 316, 316L) |
| 6 | Cover | GS-C25 | 1.4308 | 1.4408 |
3. Main Connection Dimensions:
| PN16 - PN25 - PN40 (DIN3202-F1) |
| DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 |
| L | mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 | 1250 | 1450 |
